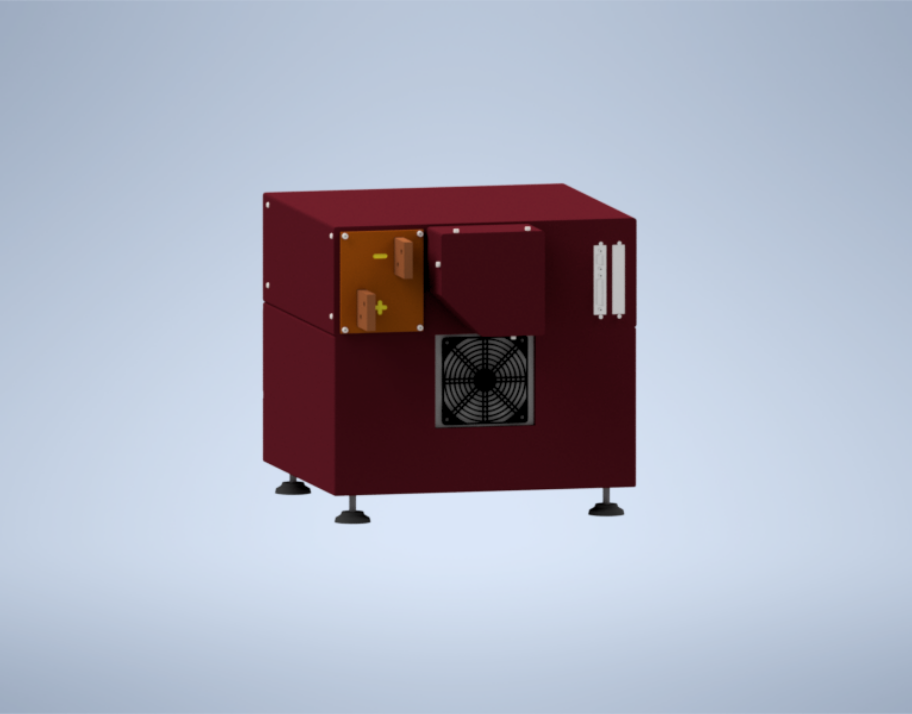

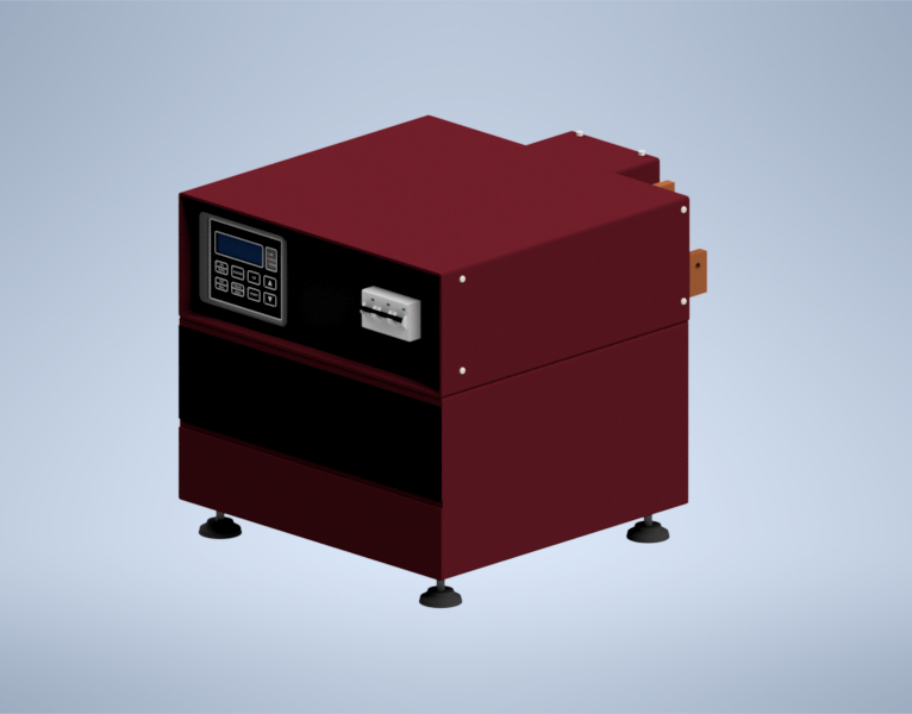

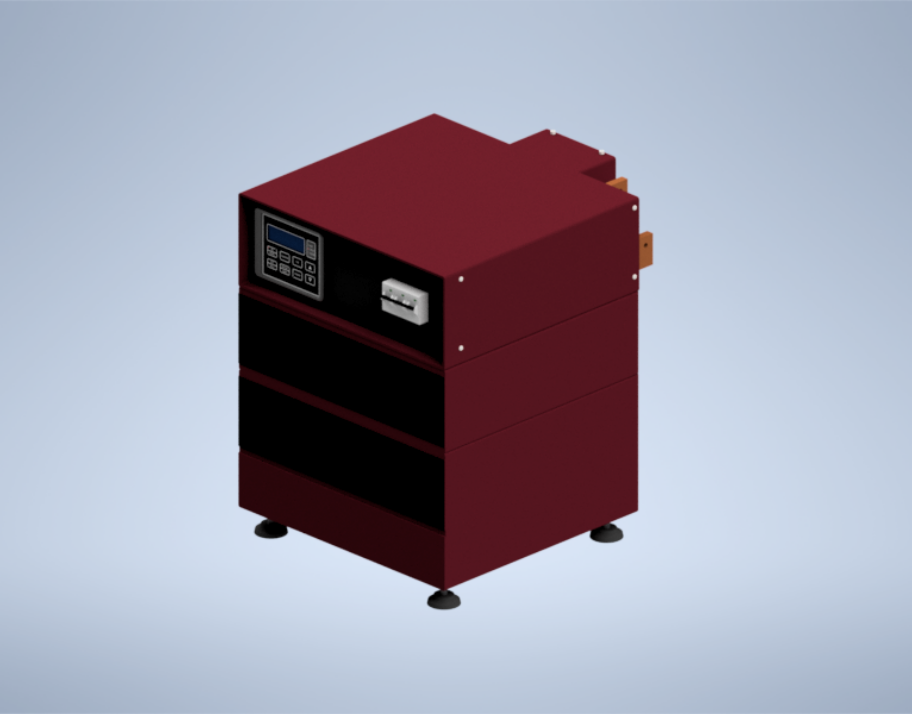

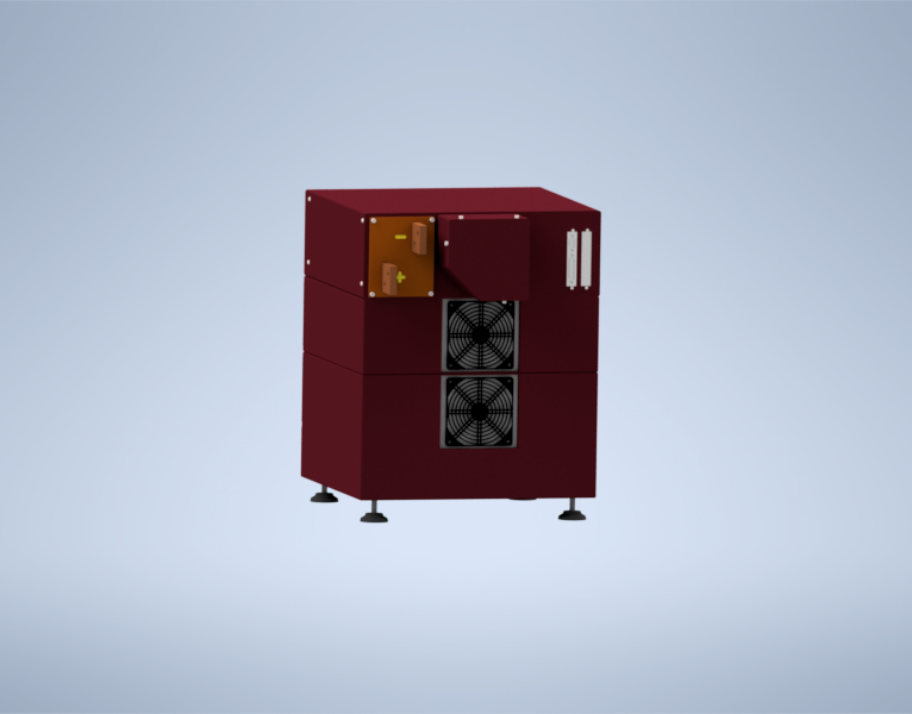

Quasar Q300 Rectifier
High-output Tabletop Unit
A modular full-bridge switch-mode rectifier with a 3-phase input composed as two or three power modules stacked vertically for an output of 30 kW, supporting interconnections for increased total power.
- Maximum output 1800 A DC
- Space saving
- Medium power for small production lines
- Affordable air cooled solution
- Manual or automatic control
- Ah counter, ramp software and more
- Ease of service
- Expandable for more power
- Reverse polarity
- Reversed output and pulsed waveforms as fast as 1ms
- Pulse plating available

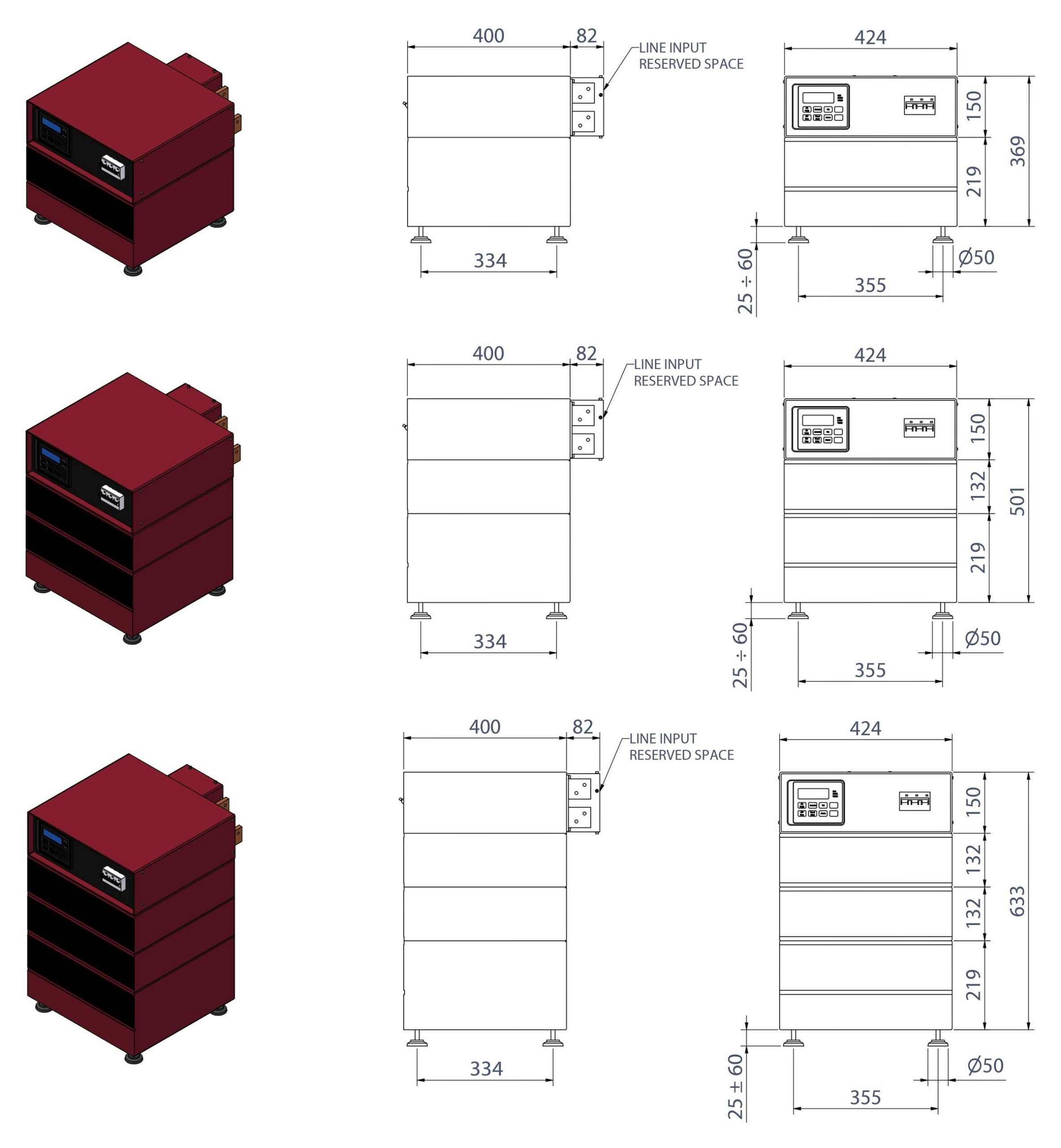

Dimensions (mm)
